22-inch Borderless 4K monitor

LSD-F22A

Features

1. High definition: compatible with 3840 × 2160 @30Hz 4K signal access. Screen physical resolution: 1920 × 1080

2. Supports HDMI signal input, VGA signal input, and BNC analog signal input and output. Through the USB interface, the advertising machine function is realized.

3. Clear: Delicate and lifelike , conveying true colors and showing your true colors

4. Bright: improved picture quality, just for better presentation

5. Use industrial screen, high brightness, high contrast,

6. Adopt high-precision standard regulated power supply, specially designed for industrial equipment, supporting 24 hours × 365 days of uninterrupted work

7. Adopt 10 - bit image chip processing technology, high-pixel progressive scanning, and exquisite picture quality.

8.Support intelligent 3D noise reduction, afterimage elimination function, dynamic brightness, contrast color optimization technology

9. Apply the world's leading LCD driver solution to accurately restore front-end signals with a strong sense of reality

10. Liquid crystal has small size, low energy consumption, zero radiation, stable image, no impact on the eyes, and is natural and healthy.

1 1. 5 ms extremely fast response, avoiding image tailing during high-speed operation

12. Using nanotechnology, the picture is more three-dimensional and transparent

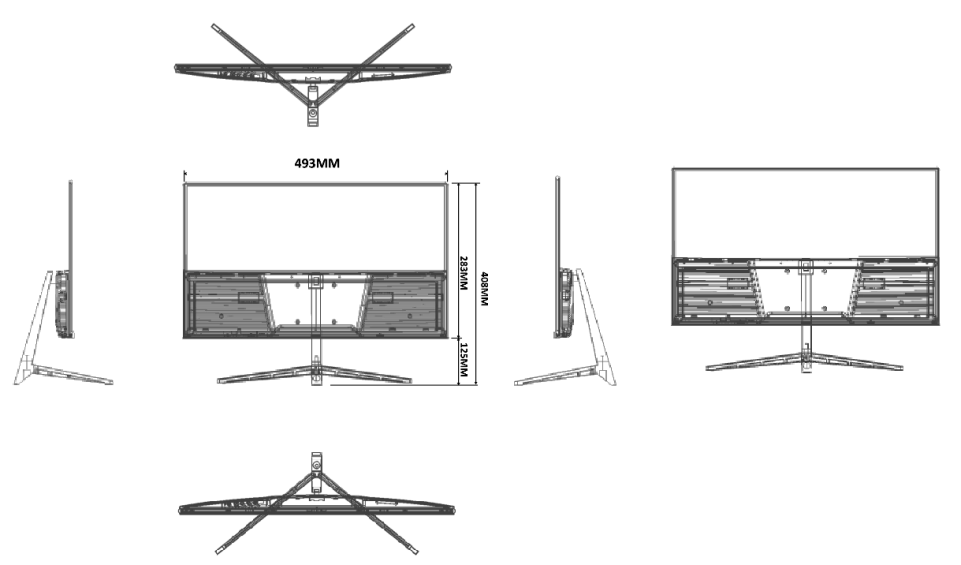

Product size chart

product specifications

Product type: 4K monitor

Product model: LSD-F22A

Screen size: 21.45 "

Screen type: LED

Screen ratio: 16:9

Brightness: 240nit

Access resolution: 3840 × 2160@30Hz, 2560 × 1440@30Hz, 1920 × 1080@60Hz and below

Screen physical resolution: 1920 × 1080

Response time: 5 ms

Viewing area: 476.64(W)×268.11(H) mm

Viewing angle: 160 degrees /170 degrees

Display color: 16.7M

Control method: panel

Input port: HDMI × 1, VGA × 1, BNC × 2, USB interface (automatically plays video when booting)

Audio output: with stereo speakers

Power supply:12V 3A

Total power: 22 W

Shell: flame retardant plastic

Installation method: base, wall hanging

Product weight: 2.5 kg

Packaging size: 548×98×372mm

Gross weight: 3.2 kg

Outer packaging size: 563×520×392mm（5pcs/Carton）

Weight: 18kg

Working environment temperature: most suitable for 20 degrees

Working environment humidity: 10%-90%RH

Storage temperature: -20 degrees - 60 degrees
