19”Professional LED Monitor

Model: LSD-C19AW

Features

Ø The motherboard can be compatible with 4K(3840*2160), 2K(2560*1440), 1080P(1920*1080) and below

Ø Turn on the screen to automatically detect the resolution of the input signal in the lower left corner of the screen.

Ø Clear: delicate and realistic, conveying true colors, showing the true colors.

Ø Bright: The quality is improved, only for better presentation.

Ø Adopt industrial screen, high brightness, high contrast.

Ø High-precision standard regulated power supply, specially designed for industrial equipment, supporting 24 hours × 365 days of uninterrupted work.

Ø Support intelligent 3D noise reduction, eliminate afterimage function, dynamic brightness, contrast color optimization technology.

Ø Apply the world's leading LED driver solution to accurately restore the front-end signal, with a strong sense of reality.

Ø LED has small volume, low energy consumption, zero radiation, stable image, no impact on the eyes, natural health.

Ø 5 ms extremely fast response, avoiding the tailing phenomenon of images in high speed operation.

Dimension

Specification

Product type: Professional Monitor

Product model: LSD-C19A

Screen size: 19"

Screen type: LCD

Screen ratio: 16:10

Brightness:  300nit

Contrast ratio: 3000:1

Response time: 5 ms

Viewing area：408.24×255.15 mm

Viewing angle: 160 /170 degrees

Display color: 16.7M

Clearness: 1440*900

Control method: Panel

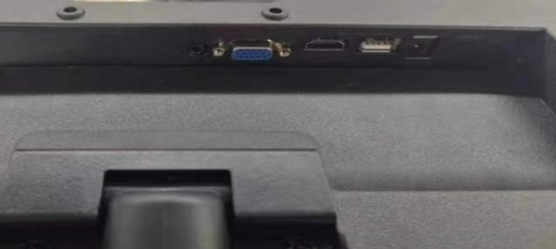

Input ports: HDMI, VGA, RCA video and audio input, USB interface (automatic video playback upon startup)

Audio output: with stereo speaker

Head set hole: Audio input

Power supply: 12V/3A

Total power: 20W

Casing: Fireproof plastic

Dimensions: 436*290 not including the foot height（foot height: 82mm）

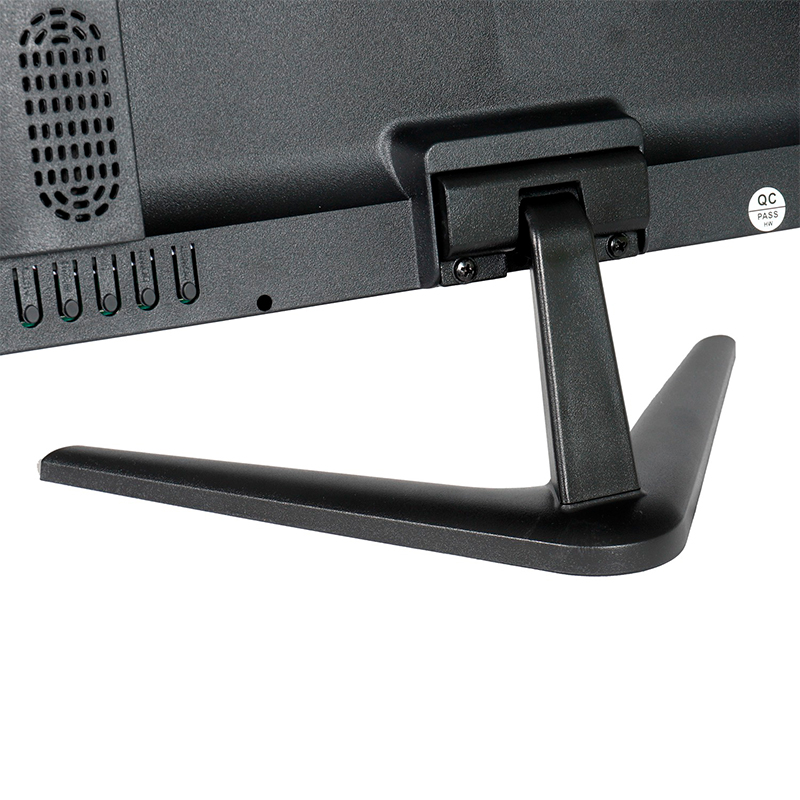

Installation method: base, wall mount

Product weight: 2.5kg

Packing size: 485×105×340mm

Gross weight: 3.4kg

Packing size: 5pcs/ carton, 555×500×360mm

Gross weight: 18kg

Working environment temperature:  20℃ is the most suitable

Working environment humidity: 10%-90%RH

Storage temperature:  -20℃- 60℃
